Interior penalty
Problem statement
We solve the same PDE as in the Hello, World! example, but this time using a discontinuous Galerkin scheme.
Numerical scheme
We consider the symmetric interior penalty method [4].
Implementation

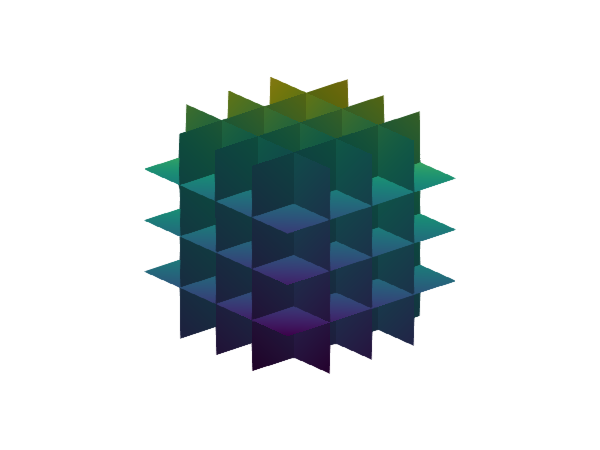

We solve the problem and visualize the solution. In this case, we draw the average of solution field on the interior $2$-faces of the computational mesh. There faces are where the interior penalty is enforced.
Implementation
using LinearAlgebra
import GalerkinToolkit as GT
import ForwardDiff
import GLMakie as Makie
import LinearSolve
#Geometry
domain = (0,1,0,1,0,1)
cells = (4,4,4)
mesh = GT.cartesian_mesh(domain,cells)
D = GT.num_dims(mesh)
n = GT.unit_normal(mesh,D-1)
Ω = GT.interior(mesh)
Γd = GT.boundary(mesh)
Λ = GT.skeleton(mesh)
h_Λ = GT.face_diameter_field(Λ)
h_Γd = GT.face_diameter_field(Γd)
#Functions
const ∇ = ForwardDiff.gradient
const g = GT.analytical_field(sum,Ω)
const f = GT.analytical_field(x->0,Ω)
mean(f,u,x) = 0.5*(f(u[1],x)+f(u[2],x))
jump(u,n,x) = u[2](x)*n[2](x) + u[1](x)*n[1](x)
#Interpolation
k = 1
const γ0 = k*(k+1)/10
γ = GT.uniform_quantity(γ0)
V = GT.lagrange_space(Ω,k;continuous=false)
#Integration
degree = 2*k
dΩ = GT.quadrature(Ω,degree)
dΛ = GT.quadrature(Λ,degree)
dΓd = GT.quadrature(Γd,degree)
#Weak form
a = (u,v) -> begin
#Laplace operator
GT.∫(dΩ) do x
∇(u,x)⋅∇(v,x)
end +
#Interior penalty
GT.∫(dΛ) do x
(γ/h_Λ(x))*jump(v,n,x)⋅jump(u,n,x)-
jump(v,n,x)⋅mean(∇,u,x)-
mean(∇,v,x)⋅jump(u,n,x)
end +
#Nitsche term
GT.∫(dΓd) do x
(γ/h_Γd(x))*v(x)*u(x)-
v(x)*n(x)⋅∇(u,x)-
n(x)⋅∇(v,x)*u(x)
end
end
l = v -> begin
#RHS
GT.∫(dΩ) do x
v(x)*f(x)
end +
#Nietche term
GT.∫(dΓd) do x
(γ/h_Γd(x))*v(x)*g(x)-
n(x)⋅∇(v,x)*g(x)
end
end
#Linear problem
p = GT.SciMLBase_LinearProblem(Float64,V,a,l)
sol = LinearSolve.solve(p)
uh = GT.solution_field(V,sol)
#Error check
eh = x -> uh(x) - g(x)
el2 = GT.∫( x->abs2(eh(x)), dΩ) |> sum |> sqrt
@assert el2 < 1.0e-9
#Visualization
fig = Makie.Figure()
ax = Makie.Axis3(fig[1,1],aspect=:data)
Makie.hidespines!(ax)
Makie.hidedecorations!(ax)
GT.makie_surfaces!(Λ;color=x->mean(GT.value,uh,x))Explicit integration loops
This other code version implements the integration loops manually instead of relying on the underlying automatic code generation.
function assemble_Ω!(A_alloc,b_alloc,V,dΩ)
#Temporaries
n = GT.max_num_reference_dofs(V)
T = Float64
Auu = zeros(T,n,n)
bu = zeros(T,n)
#Loop over bulk faces
tabulate = (∇,GT.value)
compute=(GT.coordinate,)
for V_face in GT.each_face(V,dΩ;tabulate,compute)
dofs = GT.dofs(V_face)
ndofs = length(dofs)
fill!(Auu,zero(T))
fill!(bu,zero(T))
for V_point in GT.each_point(V_face)
dV = GT.weight(V_point)
dof_∇s = GT.shape_functions(∇,V_point)
dof_s = GT.shape_functions(GT.value,V_point)
x = GT.coordinate(V_point)
fx = f.definition(x)
for i in 1:ndofs
v = dof_s[i]
bu[i] += v*fx*dV
end
for j in 1:ndofs
∇u = dof_∇s[j]
for i in 1:ndofs
∇v = dof_∇s[i]
Auu[i,j] += ∇v⋅∇u*dV
end
end
end
GT.contribute!(A_alloc,Auu,dofs,dofs)
GT.contribute!(b_alloc,bu,dofs)
end
end
function assemble_Λ!(A_alloc,V,dΛ)
#Temporaries
n = GT.max_num_reference_dofs(V)
T = Float64
Auu = zeros(T,n,n)
#Loop over skeleton faces
tabulate = (∇,GT.value)
compute=(GT.unit_normal,)
V_dfaces = GT.each_face(V,dΛ;tabulate,compute)
dΛ_dfaces = GT.each_face(dΛ)
for (dΛ_dface,V_dface) in zip(dΛ_dfaces,V_dfaces)
h = GT.diameter(dΛ_dface)
dΛ_points = GT.each_point(dΛ_dface)
for V_Dface_i in GT.each_face_around(V_dface)
dofs_i = GT.dofs(V_Dface_i)
ndofs_i = length(dofs_i)
V_points_i = GT.each_point(V_Dface_i)
for V_Dface_j in GT.each_face_around(V_dface)
V_points_j = GT.each_point(V_Dface_j)
dofs_j = GT.dofs(V_Dface_j)
ndofs_j = length(dofs_j)
fill!(Auu,zero(T))
for (dΛ_point,V_point_i,V_point_j) in zip(dΛ_points,V_points_i,V_points_j)
dS = GT.weight(dΛ_point)
s_i = GT.shape_functions(GT.value,V_point_i)
s_j = GT.shape_functions(GT.value,V_point_j)
∇s_i = GT.shape_functions(∇,V_point_i)
∇s_j = GT.shape_functions(∇,V_point_j)
n_i = GT.unit_normal(V_point_i)
n_j = GT.unit_normal(V_point_j)
for j in 1:ndofs_j
for i in 1:ndofs_i
jump_jump = (γ0/h)*(s_i[i]*n_i)⋅(s_j[j]*n_j)
jump_mean = (s_i[i]*n_i)⋅(0.5*∇s_j[j])
mean_jump = (0.5*∇s_i[i])⋅(s_j[j]*n_j)
Auu[i,j] += (jump_jump - jump_mean - mean_jump)*dS
end
end
end
GT.contribute!(A_alloc,Auu,dofs_i,dofs_j)
end
end
end
end
function assemble_Γd!(A_alloc,b_alloc,V,dΓd)
#Temporaries
n = GT.max_num_reference_dofs(V)
T = Float64
Auu = zeros(T,n,n)
bu = zeros(T,n)
#Loop over Dirichlet boundary
dΓd_dfaces = GT.each_face(dΓd)
tabulate = (∇,GT.value)
compute=(GT.unit_normal,)
V_dfaces = GT.each_face(V,dΓd;tabulate,compute)
for (V_dface,dΓd_dface) in zip(V_dfaces,dΓd_dfaces)
dofs = GT.dofs(V_dface)
ndofs = length(dofs)
V_points = GT.each_point(V_dface)
h = GT.diameter(dΓd_dface)
dΓd_points = GT.each_point(dΓd_dface)
fill!(Auu,zero(T))
fill!(bu,zero(T))
for (V_point,dΓd_point) in zip(V_points,dΓd_points)
dS = GT.weight(dΓd_point)
x = GT.coordinate(dΓd_point)
dof_s = GT.shape_functions(GT.value,V_point)
dof_∇s = GT.shape_functions(∇,V_point)
n = GT.unit_normal(V_point)
gx = g.definition(x)
for i in 1:ndofs
∇v = dof_∇s[i]
v = dof_s[i]
bu[i] += ((γ0/h)*v*gx - n⋅∇v*gx)*dS
end
for j in 1:ndofs
∇u = dof_∇s[j]
u = dof_s[j]
for i in 1:ndofs
∇v = dof_∇s[i]
v = dof_s[i]
Auu[i,j] += ((γ0/h)*v*u - v*n⋅∇u - n⋅∇v*u)*dS
end
end
end
GT.contribute!(A_alloc,Auu,dofs,dofs)
GT.contribute!(b_alloc,bu,dofs)
end
end
function integrate_l2_error(g,uh,dΩ)
#Iterators to the quantities on the
#integration points
tabulate = (GT.value,)
compute = (GT.coordinate,)
uh_faces = GT.each_face(uh,dΩ;tabulate,compute)
#Numerical integration loop
s = 0.0
for uh_face in uh_faces
for uh_point in GT.each_point(uh_face)
#Get quantities at current integration point
x = GT.coordinate(uh_point)
dV = GT.weight(uh_point)
uhx = GT.field(GT.value,uh_point)
#Add contribution
s += abs2(uhx-g.definition(x))*dV
end
end
#Compute the l2 norm
el2 = sqrt(s)
end
#Allocate matrix for free columns
T = Float64
A_alloc = GT.allocate_matrix(T,V,V,Ω,Λ,Γd)
b_alloc = GT.allocate_vector(T,V,Ω,Γd)
#Fill allocations with the function we wrote above
assemble_Ω!(A_alloc,b_alloc,V,dΩ)
assemble_Λ!(A_alloc,V,dΛ)
assemble_Γd!(A_alloc,b_alloc,V,dΓd)
#Compress matrix into the final format
A = GT.compress(A_alloc)
b = GT.compress(b_alloc)
#Build the linear system
p = LinearSolve.LinearProblem(A,b)
#Solve the problem
sol = LinearSolve.solve(p)
uh = GT.solution_field(V,sol)
#Integrate the error l2 norm
#with the function we wrote above
el2 = integrate_l2_error(g,uh,dΩ)
@assert el2 < 1.0e-9This page was generated using Literate.jl.
