Lagrange multipliers

Problem statement

We solve the same PDE as in the Hello, World! example, but this time using an auxiliary field of Lagrange Multipliers to impose the Dirichlet boundary conditions.

Implementation

using LinearAlgebra
import GalerkinToolkit as GT
import ForwardDiff
import GLMakie as Makie
import LinearSolve

#Geometry
domain = (0,1,0,1,0,1)
cells = (4,4,4)
mesh = GT.cartesian_mesh(domain,cells)
D = GT.num_dims(mesh)
n = GT.unit_normal(mesh,D-1)
Ω = GT.interior(mesh)
Γd = GT.boundary(mesh)

#Functions
∇ = ForwardDiff.gradient
g = GT.analytical_field(sum,Ω)
f = GT.analytical_field(x->0,Ω)

#Interpolation
interpolation_degree = 1
V = GT.lagrange_space(Ω,interpolation_degree)
Q = GT.lagrange_space(Γd,interpolation_degree-1;continuous=false)
VxQ = V × Q

#Integration
integration_degree = 2*interpolation_degree
dΩ = GT.measure(Ω,integration_degree)
dΓd = GT.measure(Γd,integration_degree)

#Weak form
a = ((u,p),(v,q)) -> begin
    GT.∫(dΩ) do x
        ∇(u,x)⋅∇(v,x)
    end +
    GT.∫(dΓd) do x
        (u(x)+p(x))*(v(x)+q(x)) -
        u(x)*v(x) -p(x)*q(x)
    end
end
l = ((v,q),) -> begin
    GT.∫(dΩ) do x
        v(x)*f(x)
    end +
    GT.∫(dΓd) do x
        g(x)*q(x)
    end
end

#Assemble problem
#and solve it.
p = GT.SciMLBase_LinearProblem(Float64,VxQ,a,l)
sol = LinearSolve.solve(p)
uh,qh = GT.solution_field(VxQ,sol)

#Error check
eh = x -> uh(x) - g(x)
el2 = GT.∫( x->abs2(eh(x)), dΩ) |> sum |> sqrt
@assert el2 < 1.0e-9

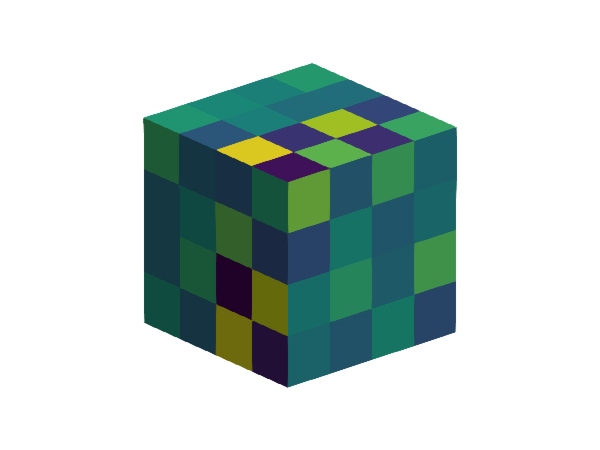

#Visualization
#of the multipliers
fig = Makie.Figure()
ax = Makie.Axis3(fig[1,1],aspect=:data)
Makie.hidespines!(ax)
Makie.hidedecorations!(ax)
GT.makie_surfaces!(Γd;color=qh)
