Mesh partitioning

One can partition mesh objects and distribute them over different process for computations on large-scale parallel systems. PartitionedArrays.jl is used under-the-hood to distribute the vectors defining the mesh object. This allows one to use several backends including MPI (by default), and the debug-backend of PartitionedArrays for developing and debugging purposes.

Data partition model

A partitioned mesh is made of the same vectors as a sequential mesh, except for the fact that these vectors are of type PVector, the type representing a distributed vector in PartitionedArrays. Thus, one can work with a partitioned mesh as with a sequential mesh, as long as you don't index the PVector objects directly (which is intentionally forbidden by PartitionedArrays for performance reasons). The usage of partitioned meshes is transparent to the user in most of the cases, as one rarely works with the underlying data directly. Functions that you call on a partitioned mesh and access the underlying mesh data, are dispatched to parallel implementations that carefully access the partitioned data. In particular, types that build on top of a partitioned mesh also distribute data using PVector objects. The same usage remarks apply to them.

The mesh data in a mesh object is partitioned as follows:

GT.node_coordinates(mesh) is a PVector distributed over nodes containing node coordinates.
GT.face_nodes(mesh,d) is a PVector distributed over d-faces of containing global node ids.
GT.reference_spaces(mesh,d) is typically a small tuple which is replicated across all processes.
GT.face_reference_id(mesh,d) is a PVector distributed over d-faces containing global reference indices.
GT.group_faces(mesh,d) is a Dict{String,PVector} object whose keys are replicated on all processes. GT.group_faces(mesh,d)[key] is a PVector distributed over the faces in this group containing global face ids.
Other vectors like normals(mesh) are distributed following the same principle.

All these PVector objects only include own indices and point to global indices. This allows us to distribute node and face data in an arbitrary way.

Creating partitioned meshes

A partitioned mesh can be created with function with_mesh_partitioner.

GalerkinToolkit.with_mesh_partitioner — Function

with_mesh_partitioner(mesher[,partitioner];[parts])

Generate a mesh calling mesher() partition it, and distribute it over the part ids in parts.

Arguments

Function mesher() should have no arguments and returns a sequential mesh object. This function is called only on one process.
partitioner [optional]: A function that takes a graph encoded as a sparse matrix, and returns a vector containing the part id of each node in the graph. Defaults to Metis.partition.

Keyword arguments

parts [optional]: A vector containing the part indices 1:P where P is the number of parts in the data distribution. By default, P is the number of MPI ranks and 1:P is distributed one item per rank.

source

Example

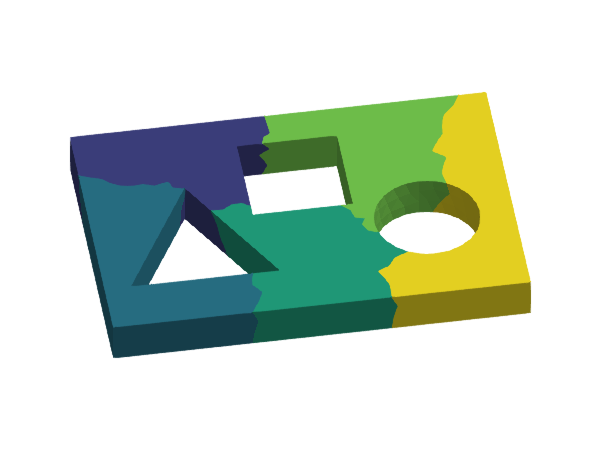

Create a 3D mesh from a msh file partitioned into 5 parts. Visualize the mesh using colors according to part owner.

import Gmsh
import GalerkinToolkit as GT
import GLMakie
import Makie

parts = 1:5
mesh = GT.with_mesh_partitioner(;parts) do
    assets_dir = normpath(joinpath(@__DIR__,"..","..","..","assets"))
    msh_file = joinpath(assets_dir,"model.msh")
    GT.mesh_from_msh(msh_file)
end

#Visualize it
fig = Makie.Figure()
elevation = 0.24π
azimuth = -0.55π
aspect = :data
ax = Makie.Axis3(fig[1,1];aspect,elevation,azimuth)
Makie.hidespines!(ax)
Makie.hidedecorations!(ax)
color = GT.FaceColor("__OWNER__")
GT.makie_surfaces!(mesh;color)

Main.mesh_partitioning_1
